FJD AT2 Lite 自動操舵システム
FJD AT2 Liteオートステアシステム
Find a Local Dealer
FJD AT2 Liteオートステアシステム
Find a Local Dealer
無線接続
Rugged Tablet
RTK精度
クイックインストール
ライトモーター
信頼できるパフォーマンス
Ils en parlent
9.46K abonnés
"Donc nous, on va rentrer à la ferme… c’est du confort en plus hein. Il fait ce qu’on attend de lui."
9.46K abonnés
"Franchement, à l’utilisation, rien à dire, génial."
手には軽く、陸には力がある

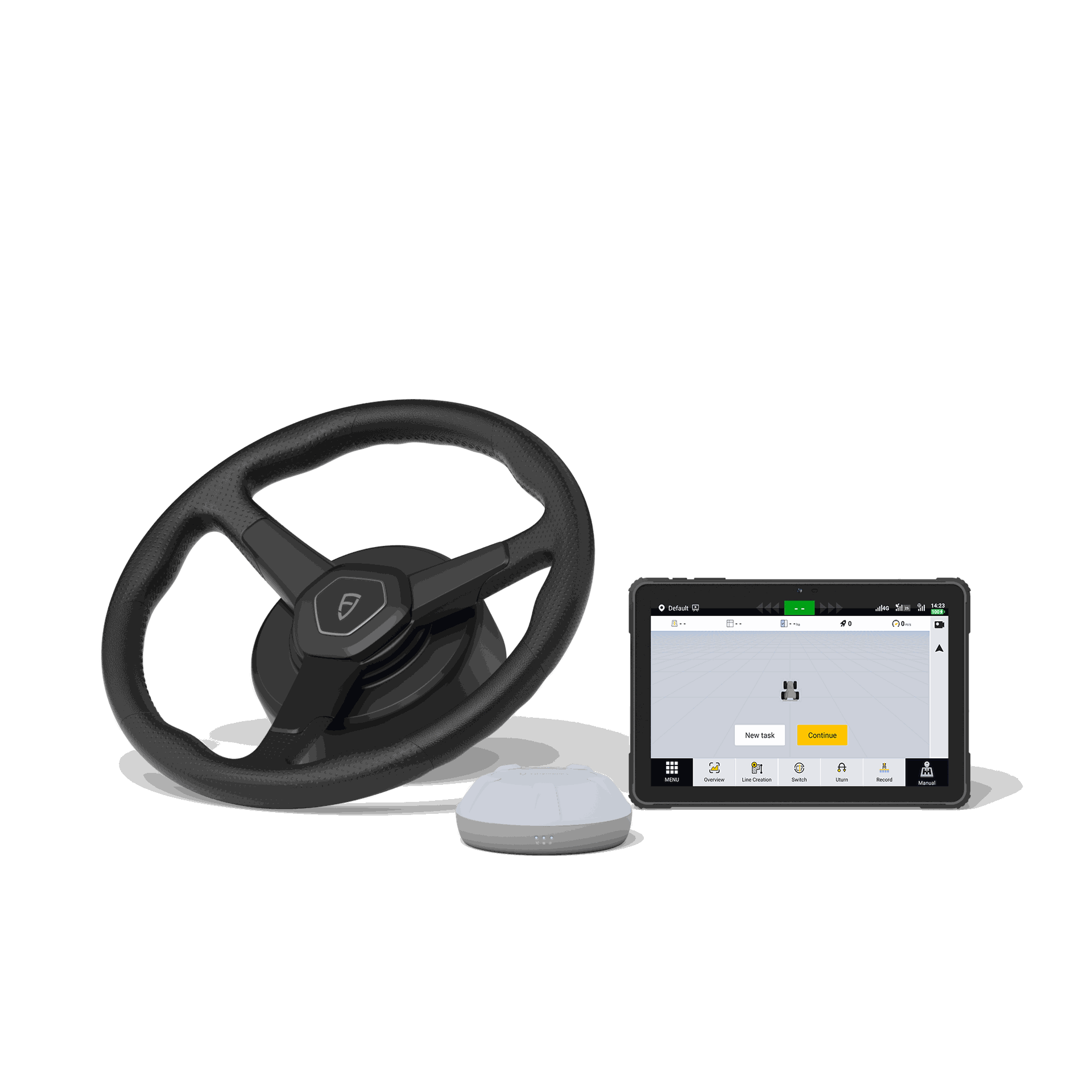

Built upon the proven performance of the AT2 series, this new-generation system features wireless connectivity to reduce cabling and simplify system setup and operation.
The new-generation AT2 Lite focuses on essential functions, offering ±2.5 cm RTK positioning accuracy, a more intuitive and user-friendly interface, stable autosteering performance, and basic ISOBUS implement control. At the same time, it integrates the FJD Link communication solution to enhance connection stability between the Tablet and the GNSS receiver, making it an ideal choice for first-time users and price-sensitive markets.
The FJD AT2 Lite Auto Steer System offers everything you need to start the autosteering journey in your farming activities!
Easy to Use

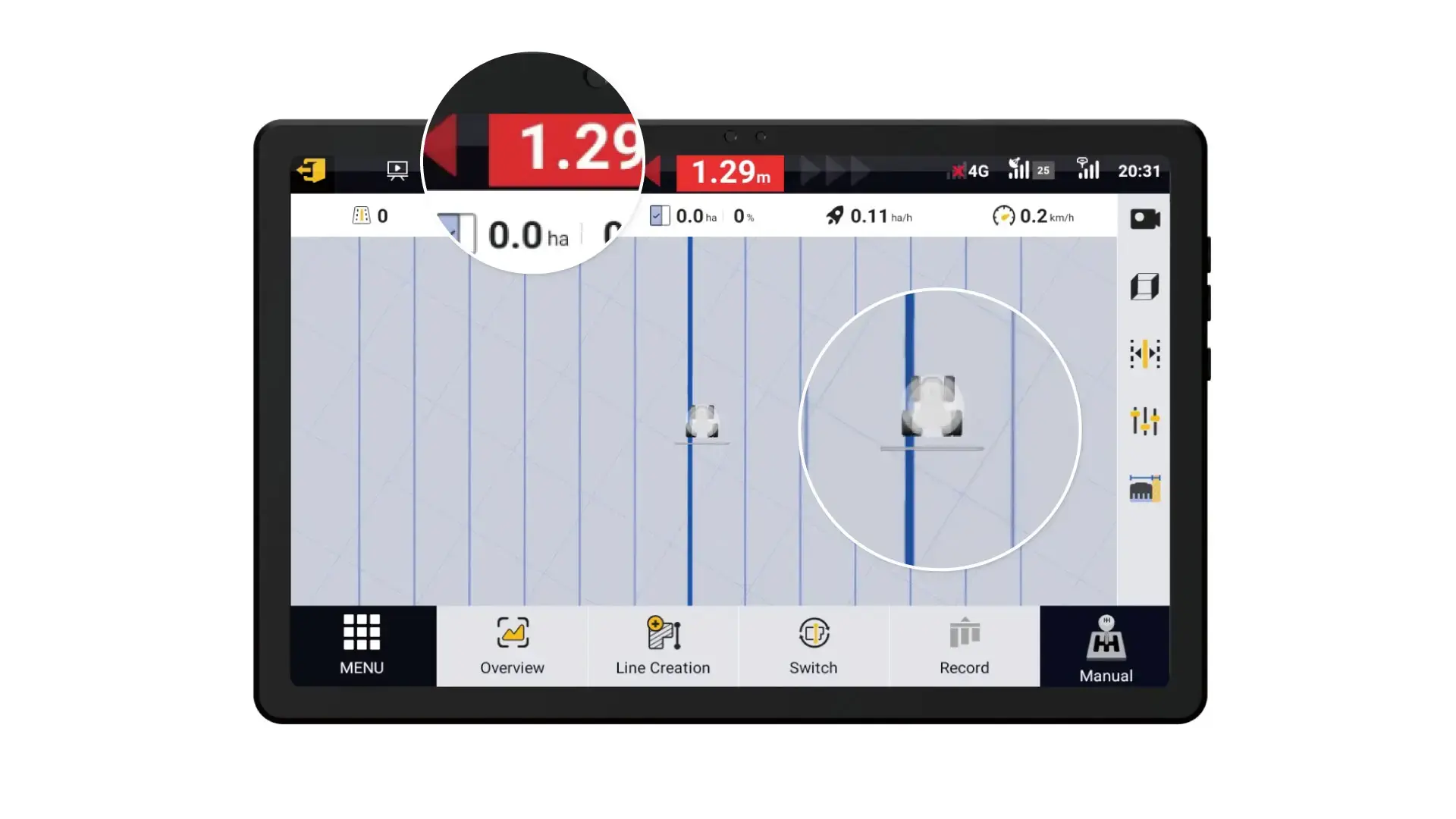

AT2 Lite supports nearly 20 guidance patterns, including Shifted Guidance Line, Tramline, AccessPath, and Single Line, making it flexible enough for a wide range of field operations. With an intuitive UI and clear operating logic, it enables one-tap activation, automatic parameter tuning, and quick switching between guidance patterns, so users can get started quickly without specialized training.

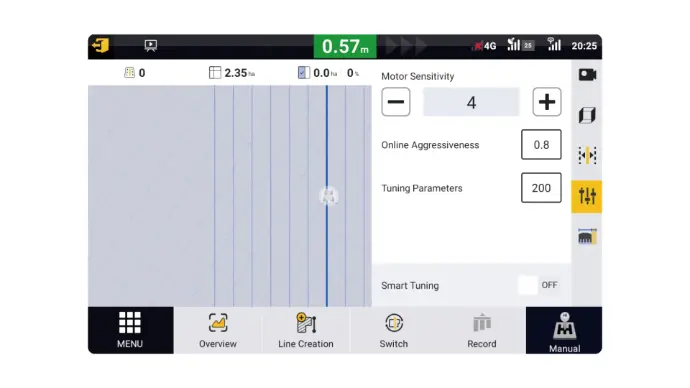

With one-tap parameter adjustment and quick home screen settings, frequently used functions are always within easy reach, making operation simple and efficient even for beginners.
For high-precision tasks, AT2 Lite supports autosteering at speeds as low as 0.15 km/h and maintains stable, accurate performance on challenging terrain such as slopes and sandy fields. The Smart Turn-In function allows the tractor to enter the guidance line smoothly at angles of up to 90°, enabling seamless path transitions and continuous operation while improving both efficiency and safety.
LINK CONNECTION

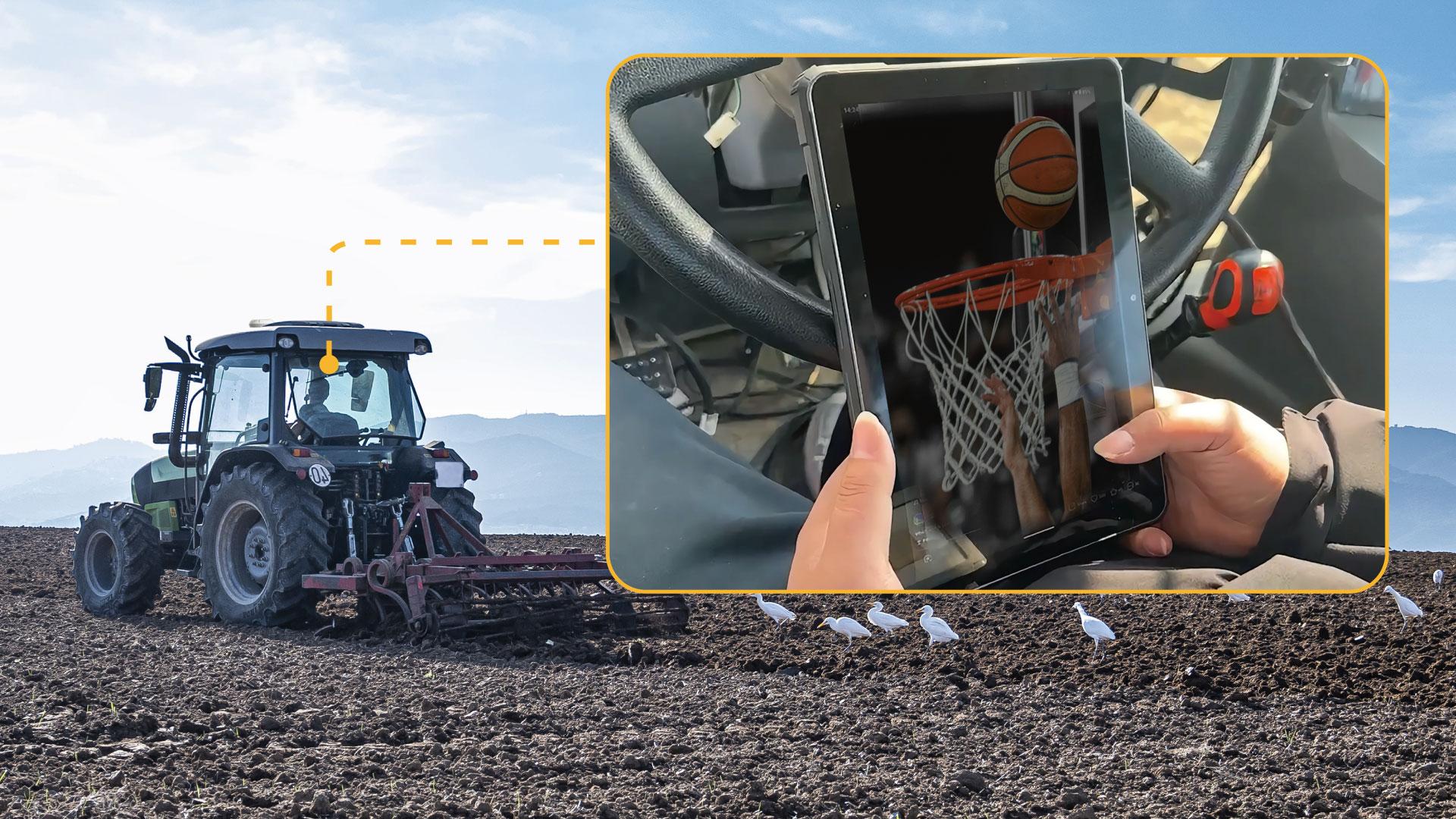

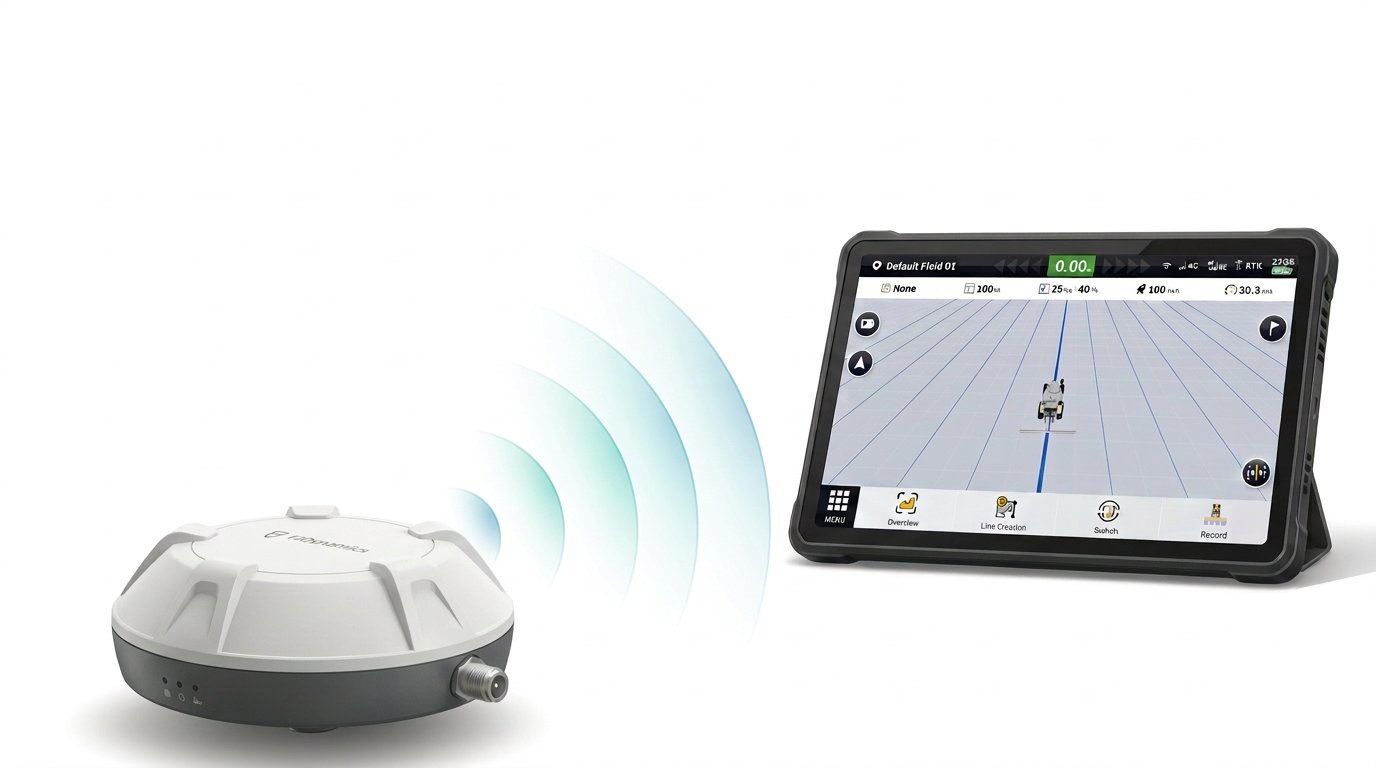

The new-generation AT2 Lite integrates the FJD Link module to enable a more stable and efficient wireless connection between the tablet and the GNSS receiver. With stronger anti-interference performance, it minimizes communication fluctuations in complex electromagnetic environments and delivers ultra-low latency for faster response.
Signal transmission latency can be as low as 10 ms, enabling faster and more responsive communication between the tablet and the GNSS receiver. Even within 1 meter of a strong interference source, the system remains stable, ensuring a more reliable and reassuring operating experience.
軽量設計
The lightweight AT2 Lite tablet weighs less than 0.8 kg, making it easier to handle during installation and daily operation. This lightweight design minimizes physical strain during transport and operation, so you don't need to fear of the fatigue caused by long-time use during your busy farming season.
40%
従来のデバイスよりも軽量
0.8 kg
重量は0.7kg未満

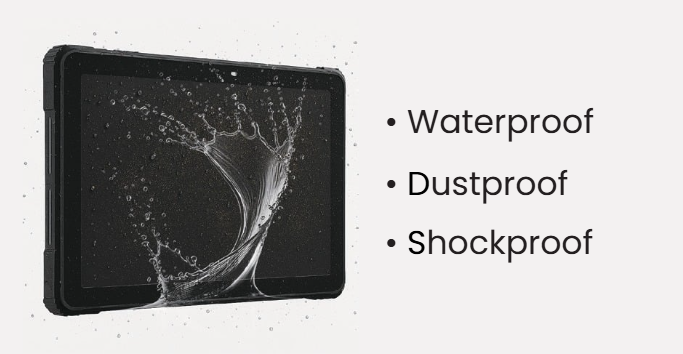

AT2 Lite features a rugged tablet weighing less than 0.8 kg, making it easy to handle and operate. Its Android-based platform also supports compatible applications beyond field operations.
クイックインストール
Compared with conventional autosteering system installations that require multiple cables and interfaces, AT2 Lite simplifies the wiring architecture and reduces the number of required cable connections.
With minimalist design, AT2 Lite integrates with machinery through one or two connection points, saving your time for critical tasks instead of spending on installation. This makes AT2 Lite easier to install on a wide range of compatible agricultural machinery in different field environments.
安心のパフォーマンス
AT2 Lite provides intelligent fault alerts to improve operational safety for both equipment and operators. When approaching obstacles or field boundaries, the system provides timely alerts to prompt steering adjustment for safer operation.
信号が困難な地域で RTK が機能しない場合、AT2 Lite は ALS 機能をアクティブ化すると、ナビゲーションの継続性を 20 分間維持します。この期間を過ぎても RTK 信号が利用できない場合は、シームレスに PPP モードに移行します。 RTK が再接続すると、システムは自動的に RTK に戻り、位置決め誤差を 2cm 以内に保ちます。
AT2 Lite allows the operator to quickly switch back to manual control when necessary. The operator can simply take control of the steering wheel to disengage autosteering and immediately regain manual steering control.
Unverbindliche Preisempfehlung (MSRP)
3799 €
